Condensing units

Enquire Now

  Polfrost condensing units are efficiently sized and can be constructed according to the technical specifications and temperature range requirements. These condensers are built using superior electrical components and proven designs. Each unit undergoes comprehensive performance and quality check before commissioning. This is why our clients trust us to offer a vast range of turnkey solutions across cooling and condenser requirements.

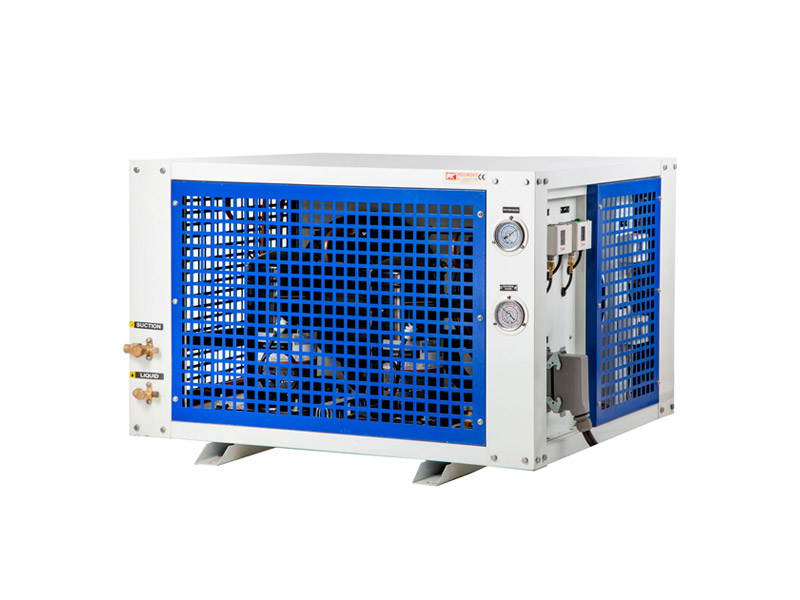

Condensing Unit
  • Description
  • Specifications
  • Range

Proper selection of components, condensor coils, fans, safety devices and protections are the salient features of Polfrost condensing units. The condensing units suitable for various temperature ranges and construction accordingly are the main feature of condensing unit, which otherwise people compare with air conditioning condensers.

Features

  • Proper sizing of condensing units
  • Proper fin spacing, airflow, CFM, cooling to the compressor are the principle features of the Polfrost Condensing units.
  • Superior quality in-house sheet metal from GI sheets and powder coated components.
  • Service valves, accumulators, liquid receivers, suction accumulators, driers and oil separators if required, form the main parts of the condensing units.
  • Safety & electrical protections, sophisticated wiring are the primary features of the condensing units.
Positive Series Data
Negative Series Data

POLFROST IDU & CDU TECHNICAL SPEC

Package
Power Requirement
V/ph/Hz
Kw
Compressor
Displacement (m³/h)
Defrost type
ED
HGD
Refrigerant
CDU Details
MODEL NO
L
H
W
Row
Fan n x Ø mm
IDU Details
MODEL NO
L
H
W
Row
Fan n x Ø mm
CFM (m³ x h)
PackageS1TP
Power Requirement
V/ph/Hz240-1-50
Kw1.74
CompressorEMERSON
Displacement (m³/h)5.2
Defrost type
HGDN.A
EDN.A
RefrigerantR 404
CDU DetailsRCS1
MODEL NO
L750
H540
W550
Row2 Rows
Fan n x Ø mm1 x 350 mm
IDU Details
MODEL NOFES1
L865
H425
W405
Row3 Rows
Fan n x Ø mm1 x 300 mm
CFM (m³ x h)1074
PackageS1ATP
Power Requirement
V/ph/Hz240-1-50
Kw2.02
CompressorEMERSON
Displacement (m³/h)7.1
Defrost type
HGDN.A
EDN.A
RefrigerantR 404
CDU DetailsRCS1A
MODEL NO
L750
H540
W550
Row3 Rows
Fan n x Ø mm1 x 350 mm
IDU Details
MODEL NO2FESA
L1245
H420
W405
Row3 Rows
Fan n x Ø mm2 x 300 mm
CFM (m³ x h)2148
PackageS2TP
Power Requirement
V/ph/Hz400-3-50
Kw2.48
CompressorEMERSON
Displacement (m³/h)9
Defrost type
HGDN.A
EDN.A
RefrigerantR 404
CDU DetailsRCS2
MODEL NO
L750
H540
W550
Row3 Rows
Fan n x Ø mm1 x 350 mm
IDU Details
MODEL NO2FES2
L1245
H420
W405
Row4 Rows
Fan n x Ø mm2 x 300 mm
CFM (m³ x h)2148
PackageS3TP
Power Requirement
V/ph/Hz400-3-50
Kw3.82
CompressorEMERSON
Displacement (m³/h)12.5
Defrost type
HGDN.A
EDN.A
RefrigerantR 404
CDU DetailsRCS3
MODEL NO
L900
H700
W610
Row3 Rows
Fan n x Ø mm1 x 450 mm
IDU Details
MODEL NO2FES3
L1325
H585
W500
Row3 Rows
Fan n x Ø mm2 x 450 mm
CFM (m³ x h)6018
PackageS4TP
Power Requirement
V/ph/Hz400-3-50
Kw5.58
CompressorEMERSON
Displacement (m³/h)17.1
Defrost type
HGDN.A
EDN.A
RefrigerantR 404
CDU DetailsRCS4
MODEL NO
L900
H700
W610
Row4 Rows
Fan n x Ø mm1 x 450 mm
IDU Details
MODEL NO2FES4
L1325
H585
W670
Row4 Rows
Fan n x Ø mm2 x 450 mm
CFM (m³ x h)6018
PackageS5TP
Power Requirement
V/ph/Hz400-3-50
Kw5.98
CompressorEMERSON
Displacement (m³/h)22.1
Defrost type
HGDN.A
EDN.A
RefrigerantR 404
CDU DetailsRCS5
MODEL NO
L950
H750
H750
Row4 Rows
Fan n x Ø mm2 x450 mm
IDU Details
MODEL NO2FES5
L1425
H595
W500
Row4 Rows
Fan n x Ø mm2 x 500 mm
CFM (m³ x h)9086
Package
Power Requirement (kw)
V/ph/Hz
Kw
Compressor
Defrost type
ED
HGD
Refrigerant
CDU Details
MODEL NO
L
H
Row
Fan n x Ø mm
IDU Details
MODEL NO
L
H
W
Row
Fan n x Ø mm
CFM (m³ x h)
PackagePKP
SCI 04-11-7 E.D
Power Requirement
V/ph/Hz400-3-50
Kw ( 1.8 k.w)
CompressorBitzer Make
Defrost type
ED√
HGDN.A
RefrigerantR 404 a
CDU Details
MODEL NORCN
L558
H533
Row3
Fan n x Ø mm1 X 350 mm
IDU Details
MODEL NOSCI 04-11-7 E.D
L978
H520
W420
Row4
Fan n x Ø mm1 x300 mm
CFM (m³ x h)1074
PackagePKP1
SCI 04-12-7 E.D
Power Requirement
V/ph/Hz400-3-50
Kw(3.62 K.W)
CompressorBitzer Make
Defrost type
ED√
HGDN.A
RefrigerantR 404 a
CDU Details
MODEL NORCN1
L736
H750
Row3
Fan n x Ø mm1 X 450 mm
IDU Details
MODEL NOSCI 04-12-7 E.D
L1578
H520
W474
Row4
Fan n x Ø mm2 x 300 mm
CFM (m³ x h)2148
PackagePKP1A
SCI 06-12-7 E.D
Power Requirement
V/ph/Hz400-3-50
Kw (4.59 k.w)
CompressorBitzer Make
Defrost type
ED√
HGDN.A
RefrigerantR 404 a
CDU Details
MODEL NORCS1A
L914
H762
Row4
Fan n x Ø mm2 X 350 mm
IDU Details
MODEL NOSCI 06-12-7 E.D
L1578
H520
W474
Row6
Fan n x Ø mm2 x 300 mm
CFM (m³ x h)2148
PackagePKP1B
SCI 04-13-7 E.D
Power Requirement
V/ph/Hz400-3-50
Kw ( 5.44 k.W)
CompressorBitzer Make
Defrost type
ED√
HGDN.A
RefrigerantR 404 a
CDU Details
MODEL NORCN1B
L914
H762
Row4
Fan n x Ø mm2 X 400 mm
IDU Details
MODEL NOSCI 04-13-7 E.D
L2178
H520
W420
Row4
Fan n x Ø mm3 x 300 mm
CFM (m³ x h)3221
PackagePKP2
SCI 06-13-7 E.D
Power Requirement
V/ph/Hz400-3-50
Kw (6.86 k.w)
CompressorBitzer Make
Defrost type
ED√
HGDN.A
RefrigerantR 404 a
CDU Details
MODEL NORCN2
L914
H762
Row6
Fan n x Ø mm2 X 400 mm
IDU Details
MODEL NOSCI 06-13-7 E.D
L2178
H520
W474
Row6
Fan n x Ø mm3 x 300 mm
CFM (m³ x h)3221
PackagePKP2A
SCI 26-42-7 E.D
Power Requirement
V/ph/Hz400-3-50
Kw (8.81 k.w)
CompressorBitzer Make
Defrost type
ED√
HGDN.A
RefrigerantR 404 a
CDU Details
MODEL NORCN2A
L1219
H762
Row6
Fan n x Ø mm2 X 450 mm
IDU Details
MODEL NOSCI 26-42-7 E.D
L1880
H595
W484
Row6
Fan n x Ø mm2 x 400 mm
CFM (m³ x h)4720
PackagePKP3
SCI 24-43-7 E.D
Power Requirement
V/ph/Hz400-3-50
Kw (10.09 k.w)
CompressorBitzer Make
Defrost type
ED√
HGDN.A
RefrigerantR 404 a
CDU Details
MODEL NORCN3
L1219
H914
Row6
Fan n x Ø mm2 X 450 mm
IDU Details
MODEL NOSCI 24-43-7 E.D
L2642
H600
W484
Row4
Fan n x Ø mm3 x 400 mm
CFM (m³ x h)7080
PackagePKP3A
SCI 26-43-7 E.D
Power Requirement
V/ph/Hz400-3-50
Kw (13.22 k.w.)
CompressorBitzer Make
Defrost type
ED√
HGDN.A
RefrigerantR 404 a
CDU Details
MODEL NORCN3A
L1524
H914
Row6
Fan n x Ø mm2 X 450 mm
IDU Details
MODEL NOSCI 26-43-7 E.D
L2642
H600
W484
Row4
Fan n x Ø mm3 x 400 mm
CFM (m³ x h)7080
PackagePKP5A
SCI 36-A3-7 E.D
Power Requirement
V/ph/Hz400-3-50
Kw(18.39 k.w)
CompressorBitzer Make
Defrost type
ED√
HGDN.A
RefrigerantR 404 a
CDU Details
MODEL NORCN5A
L
H
Row
Fan n x Ø mm
IDU Details
MODEL NO SCI 36-A3-7 E.D
L3078
H685
W518
Row6
Fan n x Ø mm3 x 450 mm
CFM (m³ x h)9027
PackagePKP5
SCI 04-11-7 E.D
Power Requirement
V/ph/Hz400-3-50
Kw(17.77 k.w)
CompressorBitzer Make
Defrost type
ED√
HGDN.A
RefrigerantR 404 a
CDU Details
MODEL NORCN5
L
H
Row
Fan n x Ø mm
IDU Details
MODEL NO SCI 46-B2-7 E.D
L2378
H753
W564
Row6
Fan n x Ø mm2 x 500 mm
CFM (m³ x h)9086

Condensing Units Range

  • Range
    • 1 ton
    • 1.5 ton
    • 2 ton
    • 3 ton
    • 4 ton
    • 5 ton
